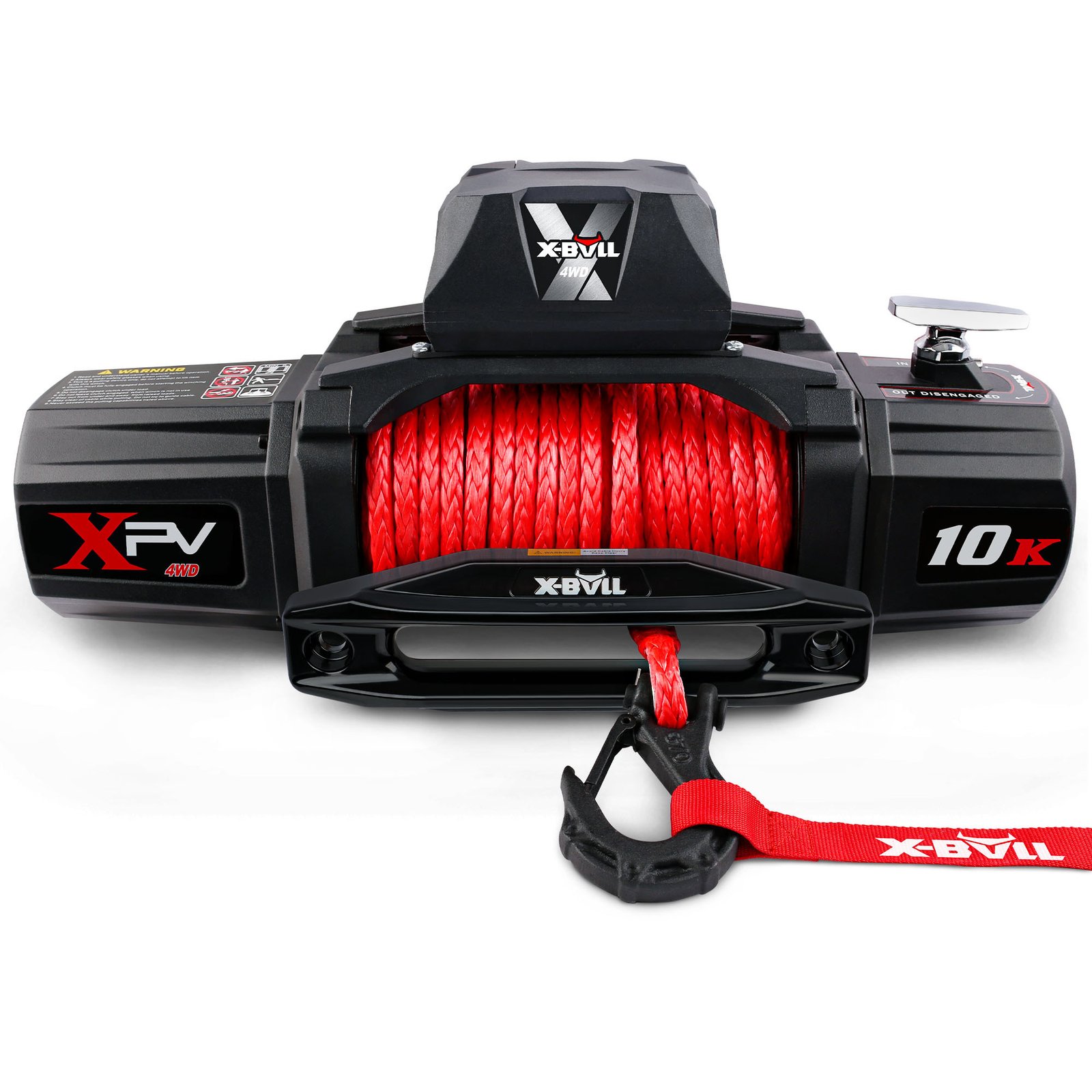

X-BULL Winch – 10000 Lbs BJ Load Capacity Electric Winch Kit – 12V Synthetic Rope Winch, Waterproof IP67 Electric Winch With Rope Fairlead With Wireless Handheld Remote Control And Wired Control Recov

specification
Product Information
Product Code:
W1218P151642
Product Type:
General items
Product Name:
X-BULL Winch – 10000 lbs BJ Load Capacity Electric Winch Kit – 12V Synthetic Rope Winch, Waterproof IP67 Electric Winch with Rope Fairlead with Wireless Handheld Remote Control and Wired Control Recovery
Main Color:
black
Main materials:
aluminium
Product dimensions
Assembly Length (in.):
23.60
Assembly Width (inches):
13.30
Assembly Height (in.):
9.60
Weight (lbs):
55.00
Package size
Length (in.):
24.00
Width (inches):
13.00
Height (in.):
10.00
Weight (lbs):
60.00
Features:

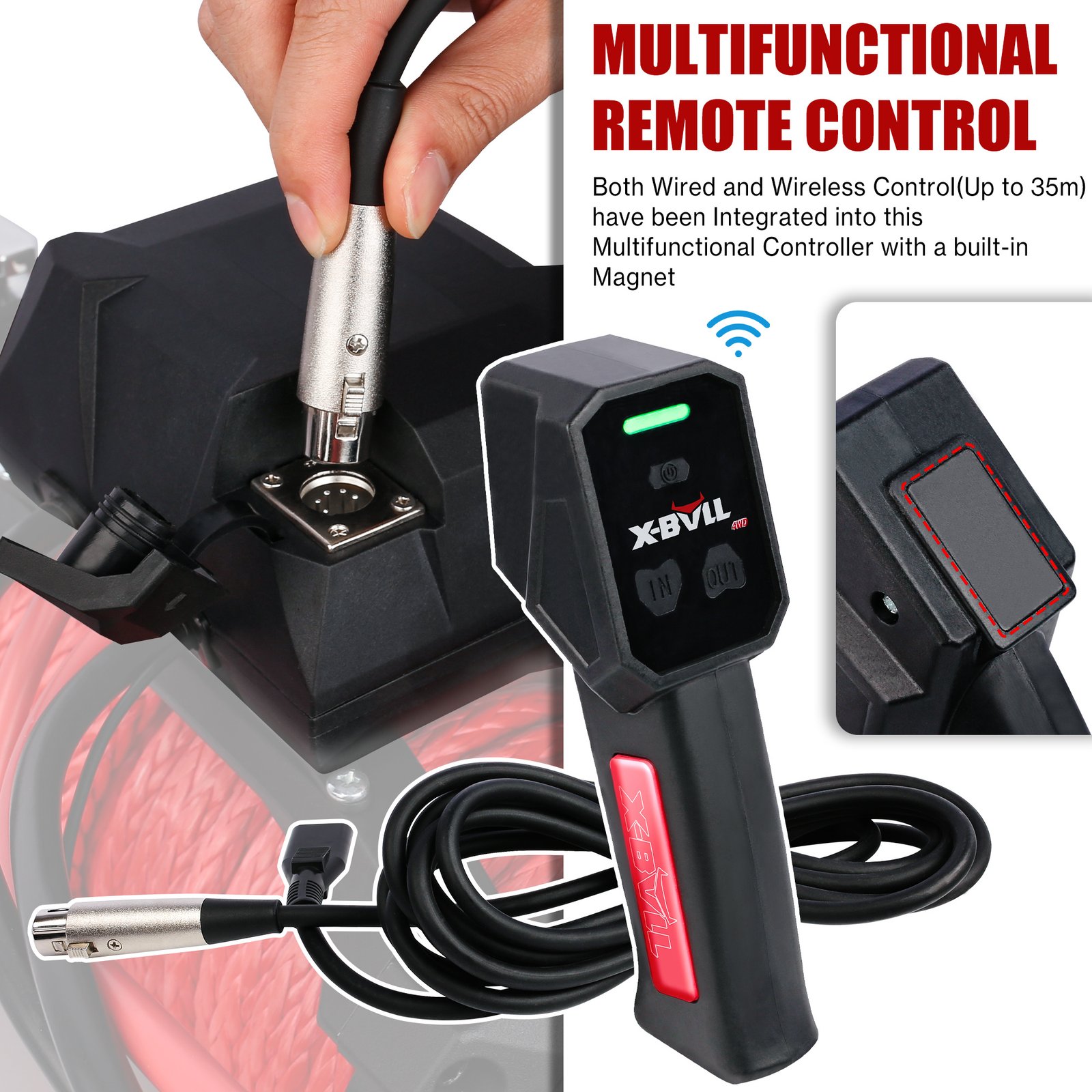

Our winch has a new generation wireless remote control with an IP67 waterproof rating, which can be operated accurately from a long distance, regardless of terrain or weather. This versatile controller combines wired and wireless control (up to 35m)

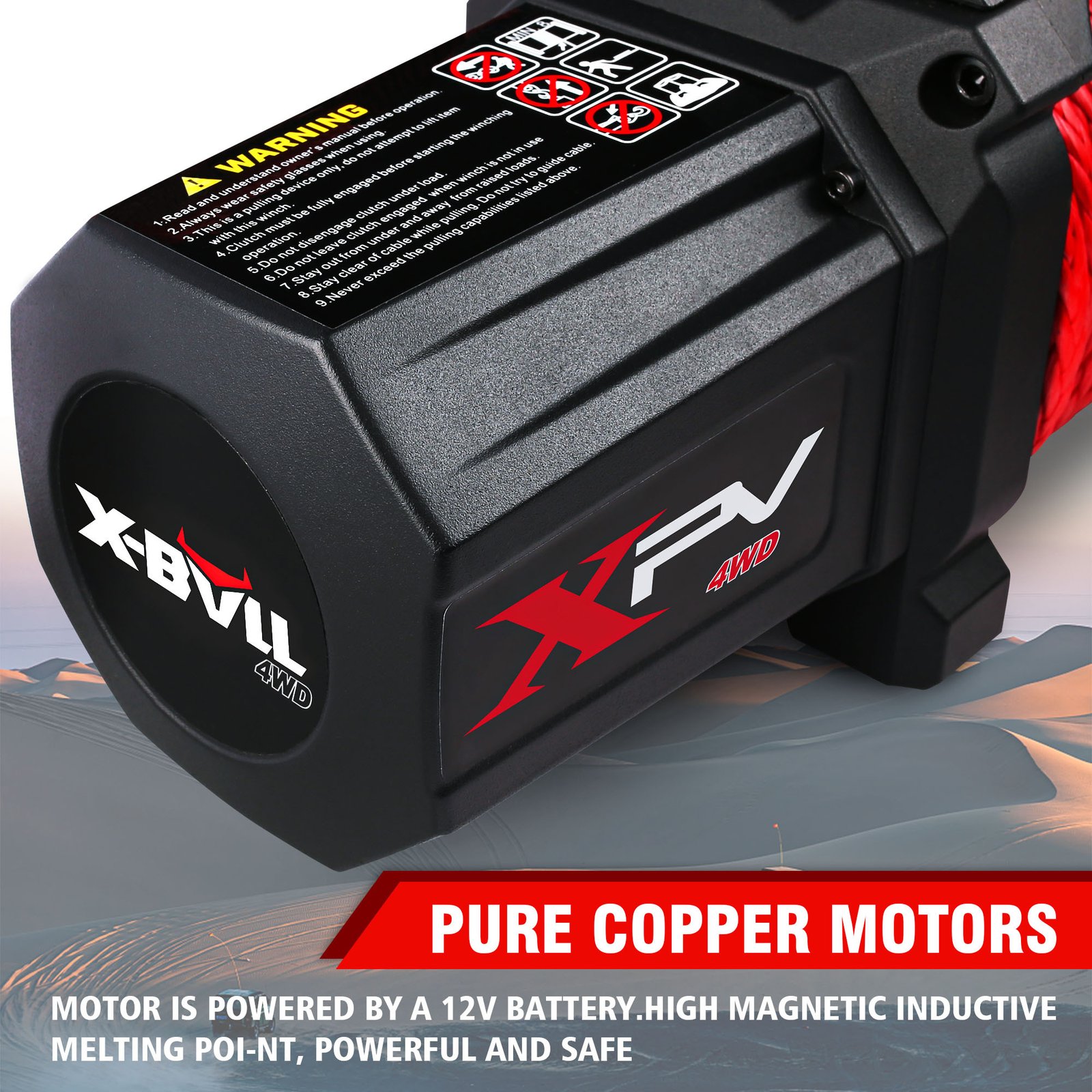

The 10,000-pound winch is powered by a permanent magnet DC 4.5V motor with a 5.6kw/5.6hp output. The new solenoid successfully implements the principles of heat insulation, good toughness and high stability, and avoids the problem of winch damage or motor burnout caused by insufficient power of the solenoid. The new clutch system strengthens the connection between the clutch and gears, making it harder to damage the clutch
For positive load control, there is a power input and a power output motor. The strong current can not only support the motor to run smoothly and work within its rated current range without any current shock, but also ensure the safety of the electric winch and your safety at all times. The 3-stage 5.6 HP series wirewound motor has a planetary gear ratio of 265:1.
With its modern and effective 3-planetary gear system, free-wound clutch and ability to provide strong traction under load and at higher linear speeds, this electric winch will prove to be an invaluable travel companion.

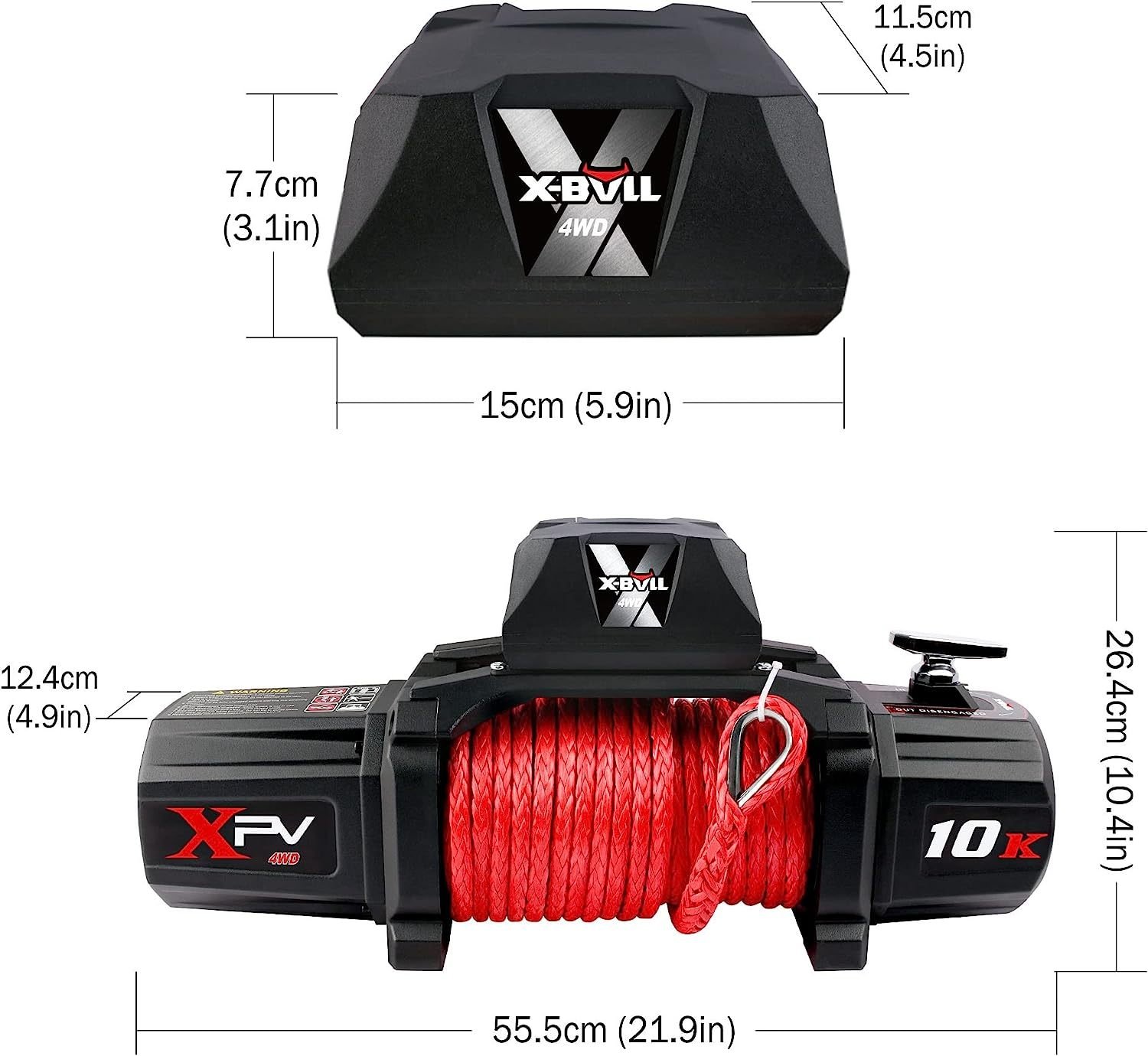

[Mounting Dimensions] (L X W X H) 20.8″ X 6.5″ X 10.24″, MOUNTING BOLT TYPE: 10.00 ± 0.015″ × 4.50 ± 0.010″. Synthetic rope: 3/8″ x 80ft.
